PFS SERIES

Description

Horti Tech PFS grow lights ultra-low profile at only 1.5 inches thin, are especially created for dense vertical commercial farming where every inch of your indoor cultivation matters. Achieve 60% energy savings over 5 years. Stack layers from floor to ceiling of leafy greens, micro-greens, and culinary herbs with maximum efficiency at near-ZERO radiant heat with outputs as high as 2.5 umol/J. Ideal for propagation of vegetable and ornamental crops including cloning/seedling beds with the lowest photosynthetic photon flex density. Offers a perfect replacement for bulky traditional T5 fluorescent lamps. Ultra-lite design is stress-free in weight increasing harvest space for higher, quality yields for a positive impact on your bottom line.

Specification

Power

40W

40W

Model No.

ST40A

ST40A

PPF

92μmol/s

100μmol/s

Efficacy

2.3μmol/J

2.5μmol/J

Weight

2.2 lbs

1 kg

2.2 lbs

1 kg

Spectrum

FSG

RBSL

Dimension

47.2x5.1x1.5 inch

1199x130x38 mm

47.2X5.1X1.5 inch

1199x130x38 mm

  •       Fanless Design

  • OSRAM LEDS LM-80, LM-79

  • High Efficacy LED Grow Lights for Plant Factory

  • Full Spectrum, R+B Spectrum, Customized Spectrum

  • External Power Supply, 1-10V Dimming

  • Ideal for indoor plant factory and greenhouse

  • IP65 Waterproof

  • Operating Temperature: -20°C to +45°C

  • ETL, CE certification

  • 3 Years Warranty

Spectrum Options

Intensity %

Wavelength (Nm)

Full Spectrum

The specially deployed full spectrum fills the negligence of the main photo receptors and pigments outside the 660nm and 450nm range, and it is suitable for reproduction to aging in indoor environments,which increases the radiant energy of red light at 660nm wavelength in white light . The overall color temperature of FSG's full spectrum is controlled at 4000K.It provides a beautiful working environment and a more realistic color reproduction degree at a CRI level of 88.

Intensity %

Wavelength (Nm)

Full Spectrum

The specially deployed full spectrum fills the negligence of the main photoreceptors and pigments outside the 660nm and 450nm range, and it is suitable for reproduction to aging in indoor environments. The overall color temperature of FSM's full spectrum is controlled at 3000-3300K, which increases the radiant energy of red light at 660nm wavelength in white light. It provides a beautiful working environment and a more realistic color reproduction degree at a CRI level of 85.

Intensity %

Wavelength (Nm)

Spectrum

400nm ultraviolet radiation and Full Spectrum, Studies have shown that THC content can be increased in cannabis plants If done correctly. If improper operation,studies have shown that UV stress will efects light suppression of chloroplasts, the reduction of plant yields and lamina deaths

Intensity %

Wavelength (Nm)

Intensity %

Wavelength (Nm)

Intensity %

Wavelength (Nm)

Spectrum

450nm blue light and 660nm red light with bimodal spectrum, based on the latest academic research,which is the most efficient spectrum in increasing plant anthocyanin, chlorophyll and carotenoid yield.

Spectrum

With a peak spectrum at 660nm, RSL is designed to exclusively target phytochrome red photoreceptors. This spectrum is widely used to target Phytochrome Red (Pr) in photomorphogenic lighting applications, and it is used to delay flowering in short-day plants.

Spectrum

With a peak spectrum at 730nm, FRSL is designed to exclusively target phytochrome far red photoreceptors. This spectrum is widely used to target Phytochrome Far Red (Pfr) in photomorphogenic lighting applications, and it is used to lengthen the dark period to encourage the flowering process in Short Day Plants.

Dimension

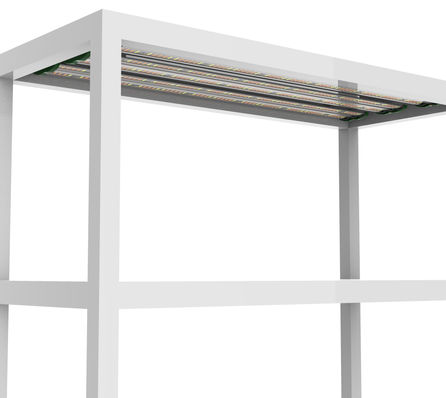

Installation
